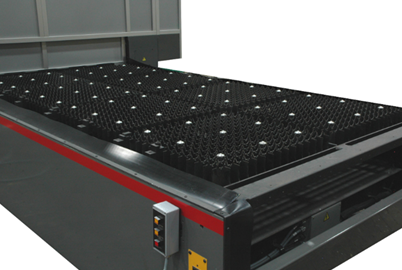

Encuentra las especificaciones de la serie CL 900
| 5×10 | 6X12 | 8×20 | ||||||
| SPECIFICATION | INCH | METRIC | SPECIFICATION | INCH | METRIC | SPECIFICATION | INCH | METRIC |
| 940 Laser | 940 Laser | 940 Laser | ||||||
| Maximum Power | 4,000w | 4,000w | Maximum Power | 4,000w | 4,000w | Maximum Power | 4,000w | 4,000w |
| Feed fiber diameter | .002” | 50µm | Feed fiber diameter | .002” | 50µm | Feed fiber diameter | .002” | 50µm |
| 960 Laser | 960 Laser | 960 Laser | ||||||
| Maximum Power | 6,000w | 6,000w | Maximum Power | 6,000w | 6,000w | Maximum Power | 6,000w | 6,000w |
| Feed fiber diameter | .002” | 50µm | Feed fiber diameter | .002” | 50µm | Feed fiber diameter | .002” | 50µm |
| 980 Laser | 980 Laser | 980 Laser | ||||||
| Maximum Power | 8,000w | 8,000w | Maximum Power | 8,000w | 8,000w | Maximum Power | 8,000w | 8,000w |
| Feed fiber diameter | .004” | 100µm | Feed fiber diameter | .004” | 100µm | Feed fiber diameter | .004” | 100µm |
| Speeds | Speeds | Speeds | ||||||
| Rapid X and Y axes | 8,500 IPM | 216 m/min | Rapid X and Y axes | 8,500 IPM | 216 m/min | Rapid X and Y axes | 8,500 IPM | 216 m/min |
| Simultaneous X-Y | 12,020 IPM | 305 m/min | Simultaneous X-Y | 12,020 IPM | 305 m/min | Simultaneous X-Y | 12,020 IPM | 305 m/min |
| Z axis | 1,700 IPM | 43 m/min | Z axis | 1,700 IPM | 43 m/min | Z axis | 1,700 IPM | 43 m/min |
| Maximum cutting | 7,200 IPM | 182 m/min | Maximum cutting | 7,200 IPM | 182 m/min | Maximum cutting | 7,200 IPM | 182 m/min |
| Acceleration of Cutting Head | Acceleration of Cutting Head | Acceleration of Cutting Head | ||||||
| X axis | 1.65g | 16.2 m/sec2 | X axis | 1.5g | 14.7 m/sec2 | X axis | 1.0g | 9.8 m/sec2 |
| Y axis | 1.65g | 16.2 m/sec2 | Y axis | 1.5g | 14.7 m/sec2 | Y axis | 1.0g | 9.8 m/sec2 |
| Simultaneous X-Y | 2.0g | 19.6 m/sec2 | Simultaneous X-Y | 2.0g | 19.6 m/sec2 | Simultaneous X-Y | 1.4g | 13.7 m/sec2 |
| Z axis | 2.9g | 28.5 m/sec2 | Z axis | 2.9g | 28.5 m/sec2 | Z axis | 2.9g | 28.5 m/sec2 |
| Machine Travel Limits | Machine Travel Limits | Machine Travel Limits | ||||||
| X axis | 121” | 3,073 mm | X axis | 158.5” | 4,026 mm | X axis | 240” | 6,096 mm |
| Y axis | 61” | 1,549 mm | Y axis | 79.75” | 2,026 mm | Y axis | 98.5” | 2,502 mm |
| Z axis | 10” | 254 mm | Z axis | 10” | 254 mm | Z axis | 10” | 254 mm |
| Workpiece Dimensions (max) | Workpiece Dimensions (max) | Workpiece Dimensions (max) | ||||||
| X axis | 120” | 3,048 mm | X axis | 157.5” | 4,000 mm | X axis | 240” | 6,096 mm |
| Y axis | 60” | 1,524 mm | Y axis | 78.75” | 2,000 mm | Y axis | 98.5” | 2,502 mm |
| Z axis (above each pallet) | 1.5” | 38 mm | Z axis (above each pallet) | 1.5” | 38 mm | Z axis (above each pallet) | 1.5” | 38 mm |
| NOTE: Lower Pallet Special Function (box cutting), Z travel is 8” above lower pallet | NOTE: Lower Pallet Special Function (box cutting), Z travel is 8” above lower pallet | NOTE: Lower Pallet Special Function (box cutting), Z travel is 8” above lower pallet | ||||||
| Workpiece Weight (max) | 2,292 lbs. | 1,040 kg | Workpiece Weight (max) | 3,949 lbs. | 1,791 kg | Workpiece Weight (max) | 6,690 lbs. | 3,035 kg |
| Accuracies | Accuracies | Accuracies | ||||||
| Absolute positioning X and Y axes | +.001” | +.025 mm | Absolute positioning X and Y axes | +.001” | +.025 mm | Absolute positioning X and Y axes | +.001” | +.025 mm |
| Repeatability X and Y axes | .001” | .025 mm | Repeatability X and Y axes | .001” | .025 mm | Repeatability X and Y axes | .001” | .025 mm |
| Contouring X and Y axes (maximum out | .003” | .076 mm | Contouring X and Y axes (maximum out of round 1” dia. hole @ 600 IPM) | .003” | .076 mm | Contouring X and Y axes (maximum out of round 1” dia. hole @ 600 IPM) | .003” | .076 mm |
| of round 1” dia. hole @ 600 IPM) | ||||||||
| Floor Dimensions (approx.) | Floor Dimensions (approx.) | Floor Dimensions (approx.) | ||||||
| Length x Width x Height | 412” x 183” x 105” | 1047cmx465cmx267cm | Length x Width x Height | 455” x 203” x 105” | 1156cmx516cmx267cm | Length x Width x Height | 708” x 301” x 105” | 1798cmx765cmx267cm |
| Machine Weight | 36,750 lbs. | 16,670 kg | Machine Weight | 42,200 lbs. | 19,182 kg | Machine Weight | 61,600 lbs. | 27,941 kg |
| Assist Gas Pressure Range | 5-400 psig | .4-27.6 bar | Assist Gas Pressure Range | 5-400 psig | .4-27.6 bar | Assist Gas Pressure Range | 5-400 psig | .4-27.6 bar |
| Ambient Temperature Range | 50° to 105° F | 10° to 40°C | Ambient Temperature Range | 50° to 105° F | 10° to 40°C | Ambient Temperature Range | 50° to 105° F | 10° to 40°C |
| Chiller | Chiller | Chiller | ||||||
| Circuit 1 – fiber engine | 37 gal – Distilled Water | 140 l – Distilled Water | Circuit 1 – fiber engine | 37 gal – Distilled Water | 140 l – Distilled Water | Circuit 1 – fiber engine | 37 gal – Distilled Water | 140 l – Distilled Water |
| Circuit 2 – optics, motors, head | 17 gal – DowthermSR1&water | 64 l-DowthermSR1&water | Circuit 2 – optics, motors, head | 17 gal -DowthermSR1&water | 64 l-DowthermSR1&water | Circuit 2 – optics, motors, head | 17 gal -DowthermSR1&water | 64 l-DowthermSR1&water |
| Fume System | Fume System | Fume System | ||||||
| Duct Opening ID | 20.38” | 517.65 mm | Duct Opening ID | 20.38” | 517.65 mm | Duct Opening ID | 20.38” | 517.65 mm |
| Recommended air flow @ ¾” static | 4,500 scfm @ .75” static | 127m3/min @ 19mm | Recommended air flow @ ¾” static | 4,500 scfm @ .75” static | 127m3/min @ 19mm | Recommended air flow @ ¾” static | 4,500 scfm @ .75” static | 127m3/min @ 19mm |
| Compressed Air Requirements | Compressed Air Requirements | Compressed Air Requirements | ||||||
| Air Purge | 480 scfh @ 80-140 psig | 480 scfh @ 5.5-9.6 bar | Air Purge | 480 scfh @ 80-140 psig | 480 scfh @ 5.5-9.6 bar | Air Purge | 480 scfh @ 80-140 psig | 480 scfh @ 5.5-9.6 bar |
| Max temperature | 100°F | 37.7°C | Max temperature | 100°F | 37.7°C | Max temperature | 100°F | 37.7°C |
| Max oil/water content | .01 OZ/hr | .3 ml/hr | Max oil/water content | .01 OZ/hr | .3 ml/hr | Max oil/water content | .01 OZ/hr | .3 ml/hr |
| Dewpoint | 40° F | 4.4° C | Dewpoint | 40° F | 4.4° C | Dewpoint | 40° F | 4.4° C |
5×10 | 6×12 | 8×20 | Specification | Inch | Metric | Specification | Inch | Metric | Specification | Inch | Metric |
|---|---|---|---|---|---|---|---|---|
940 laser Maximum power Feed fiber diameter 960 laser Maximum power Feed fiber diameter 980 laser Maximum power Feed fiber diameter Speeds Rapid X and Y axes Simultaneous X-Y Z axis Maximum cutting Acceleration of Cutting Head X axis Y axis Simultaneous X-Y Z axis Machine Travel Limits X axis Y axis Z axis Workpiece Dimensions (max) X axis Y axis Z axis (above each pallet) NOTE: Lower Pallet Special Function (box cutting), Z travel is 8” above lower pallet Workpiece Weight (max) Accuracies Absolute positioning X and Y axes Repeatability X and Y axes Contouring X and Y axes (maximum out of round 1” dia. hole @ 600 IPM) Floor Dimensions (approx.) Length x Width x Height Machine Weight Assist Gas Pressure Range Ambient Temperature Range Chiller Circuit 1 – fiber engine Circuit 2 – optics, motors, head Fume System Duct Opening ID Recommended air flow @ ¾” static Compressed Air Requirements Air Purge Max temperature Max oil/water content Dewpoint | 4,000 w 0.002″ 6,000 w 0.002″ 8,000 w 0.004″ 8,500 IPM 12,020 IPM 1,700 IPM 7,200 IPM 1.65g 1.65g 2.0g 2.9g 121” 61” 10” 120” 60” 1.5” 2,292 lbs. +.001” .001” .003” 412” x 183” x 105” 36,750 lbs. 5-400 psig 50° to 105° F 37 gal – Distilled Water 17 gal – DowthermSR1&water 20.38” 4,500 scfm @ .75” static 480 scfh @ 80-140 psig 100°F .01 OZ/hr 40° F | 4,000 w 50µm 6,000 w 50µm 8,000 w 100µm 216 m/min 305 m/min 43 m/min 182 m/min 16.2 m/sec2 16.2 m/sec2 19.6 m/sec2 28.5 m/sec2 3,073 mm 1,549 mm 254 mm 3,048 mm 1,524 mm 38 mm 1,040 kg +.025 mm .025 mm .076 mm 1047cmx465cmx267cm 16,670 kg .4-27.6 bar 10° to 40°C 140 l – Distilled Water 64 l-DowthermSR1&water 517.65 mm 127m3/min @ 19mm 480 scfh @ 5.5-9.6 bar 37.7°C .3 ml/hr 4.4° C | 940 laser Maximum power Feed fiber diameter 960 laser Maximum power Feed fiber diameter 980 laser Maximum power Feed fiber diameter Speeds Rapid X and Y axes Simultaneous X-Y Z axis Maximum cutting Acceleration of Cutting Head X axis Y axis Simultaneous X-Y Z axis Machine Travel Limits X axis Y axis Z axis Workpiece Dimensions (max) X axis Y axis Z axis (above each pallet) NOTE: Lower Pallet Special Function (box cutting), Z travel is 8” above lower pallet Workpiece Weight (max) Accuracies Absolute positioning X and Y axes Repeatability X and Y axes Contouring X and Y axes (maximum out of round 1” dia. hole @ 600 IPM) Floor Dimensions (approx.) Length x Width x Height Machine Weight Assist Gas Pressure Range Ambient Temperature Range Chiller Circuit 1 – fiber engine Circuit 2 – optics, motors, head Fume System Duct Opening ID Recommended air flow @ ¾” static Compressed Air Requirements Air Purge Max temperature Max oil/water content Dewpoint | 4,000 w 0.002″ 6,000 w 0.002″ 8,000 w 0.004″ 8,500 IPM 12,020 IPM 1,700 IPM 7,200 IPM 1.65g 1.65g 2.0g 2.9g 121” 61” 10” 120” 60” 1.5” 2,292 lbs. +.001” .001” .003” 412” x 183” x 105” 36,750 lbs. 5-400 psig 50° to 105° F 37 gal – Distilled Water 17 gal – DowthermSR1&water 20.38” 4,500 scfm @ .75” static 480 scfh @ 80-140 psig 100°F .01 OZ/hr 40° F | 4,000 w 50µm 6,000 w 50µm 8,000 w 100µm 216 m/min 305 m/min 43 m/min 182 m/min 16.2 m/sec2 16.2 m/sec2 19.6 m/sec2 28.5 m/sec2 3,073 mm 1,549 mm 254 mm 3,048 mm 1,524 mm 38 mm 1,040 kg +.025 mm .025 mm .076 mm 1047cmx465cmx267cm 16,670 kg .4-27.6 bar 10° to 40°C 140 l – Distilled Water 64 l-DowthermSR1&water 517.65 mm 127m3/min @ 19mm 480 scfh @ 5.5-9.6 bar 37.7°C .3 ml/hr 4.4° C | 940 laser Maximum power Feed fiber diameter 960 laser Maximum power Feed fiber diameter 980 laser Maximum power Feed fiber diameter Speeds Rapid X and Y axes Simultaneous X-Y Z axis Maximum cutting Acceleration of Cutting Head X axis Y axis Simultaneous X-Y Z axis Machine Travel Limits X axis Y axis Z axis Workpiece Dimensions (max) X axis Y axis Z axis (above each pallet) NOTE: Lower Pallet Special Function (box cutting), Z travel is 8” above lower pallet Workpiece Weight (max) Accuracies Absolute positioning X and Y axes Repeatability X and Y axes Contouring X and Y axes (maximum out of round 1” dia. hole @ 600 IPM) Floor Dimensions (approx.) Length x Width x Height Machine Weight Assist Gas Pressure Range Ambient Temperature Range Chiller Circuit 1 – fiber engine Circuit 2 – optics, motors, head Fume System Duct Opening ID Recommended air flow @ ¾” static Compressed Air Requirements Air Purge Max temperature Max oil/water content Dewpoint | 4,000 w 0.002″ 6,000 w 0.002″ 8,000 w 0.004″ 8,500 IPM 12,020 IPM 1,700 IPM 7,200 IPM 1.65g 1.65g 2.0g 2.9g 121” 61” 10” 120” 60” 1.5” 2,292 lbs. +.001” .001” .003” 412” x 183” x 105” 36,750 lbs. 5-400 psig 50° to 105° F 37 gal – Distilled Water 17 gal – DowthermSR1&water 20.38” 4,500 scfm @ .75” static 480 scfh @ 80-140 psig 100°F .01 OZ/hr 40° F | 4,000 w 50µm 6,000 w 50µm 8,000 w 100µm 216 m/min 305 m/min 43 m/min 182 m/min 16.2 m/sec2 16.2 m/sec2 19.6 m/sec2 28.5 m/sec2 3,073 mm 1,549 mm 254 mm 3,048 mm 1,524 mm 38 mm 1,040 kg +.025 mm .025 mm .076 mm 1047cmx465cmx267cm 16,670 kg .4-27.6 bar 10° to 40°C 140 l – Distilled Water 64 l-DowthermSR1&water 517.65 mm 127m3/min @ 19mm 480 scfh @ 5.5-9.6 bar 37.7°C .3 ml/hr 4.4° C |
